Summary:

A new browser study revealed a shift in how we interact with the Web. University of Hamburg researchers found the Web moving from static hypertext information to dynamic interactive services. Clickstream heatmaps and web page statistics show rapid interaction over smaller areas of the screen. The authors recommend that web developers create concise, flexible, and fast loading web pages to keep pace with the speed of web navigation.

A recent clickstream study revealed new information about how we use and peruse the Web. University of Hamburg researchers found that the Web is moving from a static hypertext information system to dynamic interactive services with rapid interactivity between man and machine. The authors recommend that web developers create concise, fast loading web pages to keep pace with the speed of web navigation.

The Hamburg researchers also found an F-shaped pattern of clicking activity similar to results found in eye tracking studies (see Figure 1). There appears to be a strong link between our eye and hand movements over the surface of web pages.

clickstream heatmap crop

Figure 1: Clickstream Heatmap Closeup Shows Navigation Bars

Web Navigation Study: A Clickstream Analysis

In the largest web browsing study to date, Harald Weinreich and colleagues analyzed over 135,000 page visits by 25 experienced volunteers over a mean period of 105 days (Weinreich et al. 2006). Using instrumented browsers to “record the interaction with all user interface widgets” the researchers tracked actual user behavior over a long period while honoring privacy concerns. The clickstream and navigation logs were merged, filtered, and analyzed to glean insights into how we interact with the Web.

The Evolution of Web Navigation

The researchers found that the nature of web navigation has changed over time. Comparing three web browsing studies ending in 1994, 1996, and 2005 revealed a shift in how users initiate web page visits (see Table 1). The most significant changes were the increase in submit and new window events and the decrease in the use of the back button.

Link following has remained the most common navigation activity, accounting for 43.5% of page transitions. Direct access through bookmarks, typing in urls, or home page buttons has remained relative steady around 10%. New windows has jumped from less than 1% to over 10% of all page transitions in the past 11 years. Form submission has increased from 4.4% to over 15% of all navigation actions reflecting the increase in web services. 43% of all form submissions involve search submission, followed by online dictionary and travel planners. With the increase in new windows and use of AJAX, the back button has dropped from over 35% to less than 15% of all page transitions. Overall the trend reflects an increase in interactivity and form submission, with a corresponding 50% drop in the use of the back button for web navigation.

Table 1: Comparison chart of three long-term studies
Catledge & Piktkow Tauscher & Greenberg Weinreich et al.
Time of study 1994 1995-1996 2004-2005
No. of users 107 23 25
Length (days) 21 35-42 52-195
No. of visits 31,134 84,841 137,272
Recurrence rate 61% 58% 45.6%
Link 45.7% 43.4% 43.5%
Back 35.7% 31.7% 14.3%
Submit 4.4% 15.3%
New window 0.2% 0.8% 10.5%
Direct access 12.6% 13.2% 9.4%
Reload 4.3% 3.3% 1.7%
Forward 1.5% 0.8% 0.6%
Other 2.3% 4.8%

Search Query Length

The average length of all search queries including reformulations was 2.57 words, with new queries averaging 2.14 words per query (see Figure 2).

search query keyword length

Figure 2: Number of keywords per query

Page Revisit Method versus Time

In order to characterize how users return to web pages team member Eelco Herder tested how users revisit pages versus the time between revisits using four intervals: within an hour, a day, a week, and longer than a week (Herder 2006). For short term revisits within an hour the back button predominates (see Figure 3). For medium-term revisits within a day the page address is typed directly into the address bar, with users relying on the autocomplete feature in most browsers. Longer term, after some URLs are forgotten by browsers and users, link following dominates how users revisit web pages with over 67% of revisits.

revisit access methods versus time

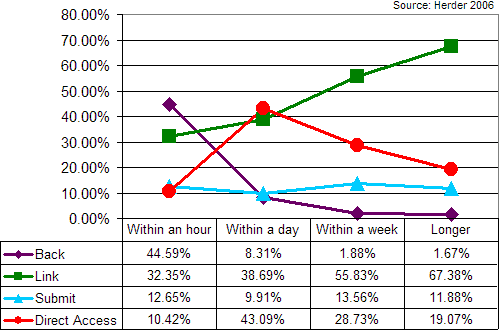

Figure 3: Access Methods For Shorter And Longer Term Revisits

Clickstream Heatmaps Resemble Eye Tracking Heatmaps

The clickstream results show a similar F-shaped triangular pattern to heatmaps derived from eye tracking studies (see Figures 4 and 5 and Hotchkiss 2005, Nielsen 2006). User click patterns appear to follow eye fixations. Weinreich found that the most active selected area is located in the upper left corner of the page: over 45% of all user clicks occurred in a region slightly larger than the upper left quadrant of the visible page (520 x 400 pixels). Figures 1 and 4 show that horizontal and vertical navigation bars (at least their left and top-most portions) are used most heavily. Weinreich and company also found an unexpectedly active area in the lower right part of the page, at around 600 x 1000 pixels. This turned out to be where Google placed their next page link, forcing most users to scroll.

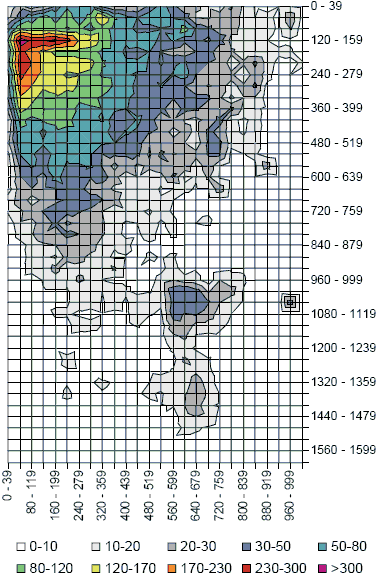

Figure 4: Link activity areas of Web users – Clickstream Heatmap

clickstream heatmap weinreich

Source: Weinreich et al. 2006. Used with permission

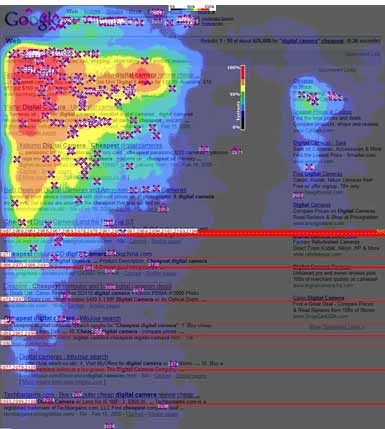

Figure 5: The Golden Triangle – Eye Tracking on Google Results

eye tracking heatmap enquiro

Source: Hotchkiss 2005

Note: These two heatmaps are scaled to match vertically at 800 pixels in height.

Weinreich found that over three quarters (76.5%) of the selected links were in the visible area at load time (see Table 2). User rarely scroll horizontally (total of 0.4%), but over 23% of all links followed were “below the fold.” This is surprising considering the short mean stay time on pages.

Table 2: Location of selected links
Visible Area Right of Visible Area
Visible Area 76.5% 0.3%
Below Visible Area 23.1% 0.1%

Average Screen Dimensions

Although all survey participants used a screen resolution of at least 1024 by 768 pixels, most did not utilize their entire screen for browser windows. Smaller windows, toolbars, and other widgets left users with about 160 horizontal pixels and 170 vertical pixels unused. For 1024 by 768 screen users, the average available document width was about 890 pixels (see Figure 6). The clickstream results confirm this, with clicks dropping off dramatically after about 880 pixels in screen width (see Figure 4). The authors recommend flexible layouts that leave at least 15% of screen width unused.

screen real estate

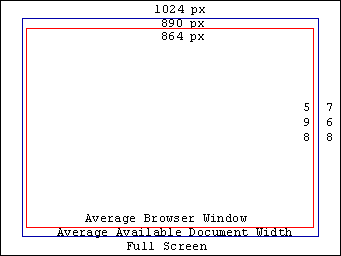

Figure 6: Screen Real Estate

Average Web Page Statistics

Weinreich and Herder analyzed users interacting with over 65,000 unique URIs. The average web page had 53 hyperlinks and 551 visible words. Stay times were short, 25% of all documents were displayed for less than 4 seconds and 52% of all visits were shorter than 10 seconds with a peak value located between 2 and 3 seconds (see Figure 7). Users averaged 3.25 sessions and 77 minutes per day. The median session length was 13 pages, but the majority of sessions were 34 pages or longer.

average stay times

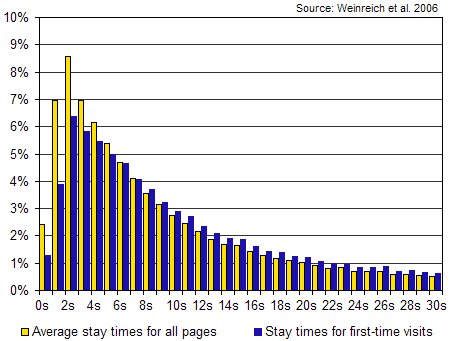

Figure 7: Distribution of stay times for all participants

Average Webpage Download Times

Web page download times were measured at different bandwidths (see Figure 8). Web performance was poor for ISDN users with less than 60% of all documents downloading completely within 4 seconds. Download times for dial-up users would be about 1.6 to 2 times slower than ISDN users.

download times by bandwidth

Figure 8: Web Page Download Times By Bandwidth

Conclusion

The nature of web navigation is changing from static information delivery to dynamic interactive web services. The speed of web navigation is high with short stay times, but long download times for ISDN and dial-up users. To enable rapid interactivity web designers should design fast loading web pages with concise headlines and be aware of web page hot spots to maximize conversion rates.

Further Reading

Catledge, L.D., Pitkow, I.E., “Characterizing browsing strategies in the World-Wide Web,”
Computer Networks and ISDN Sysytem, 1995, (27)6: 1065-1073.
Clickdensity
Web service to create clickstream heatmaps. Similar to web analytics services, Clickdensity requires adding a few lines of JavaScript to target pages. On non-framed, fixed layouts the service records clicks and creates heatmaps.
Herder, E., “Forward, Back and Home Again – Analyzing User Behavior on the Web,”
Herder’s detailed examination of the Web and web navigation expands our knowledge of user interaction with the Web. Includes an expanded version of the long-term browser study the Weinreich report is based upon. Ph.D. Thesis, University of Twente, April 13, 2006.
Hotchkiss, G., “Did-it, Enquiro, and Eyetools uncover Search’s Golden Triangle,”
Results from an eye tracking study of Google result pages reveals a triangular shaped “golden triangle” of eye fixation activity. Enquiro, 04/2005.
Nielsen, J. “F-Shaped Pattern For Reading Web Content,
Eyetracking visualizations show that users often read Web pages in an F-shaped pattern: two horizontal stripes followed by a vertical stripe. Found that users scan web pages quickly, and focus on the first few words of headlines and top paragraphs. Jakob Nielsen’s Alertbox, April 17, 2006.
Nielsen, J. “Screen Resolution and Page Layout,”
Recommends that we optimize Web pages for 1024×768, but use a liquid layout that stretches well for any resolution, from 800×600 to 1280×1024. 60% of all monitors are set to 1024×768 pixels. Jakob Nielsen’s Alertbox, July 31, 2006.
Tauscher, L., Greenberg, S., “How People Revisit Web Pages: Empirical Findings and Implications for the Design of History Systems,”
Int. J. of Human Computer Studies, 1997, 47(1): 97-138.
Weinreich, H., Obendort, H., Herder, E., and M. Mayer, “Off the Beaten Tracks: Exploring Three Aspects of Web Navigation,”
In the largest clickstream study to date University of Hamburg and Twente researchers instrumented web browsers to track user behavior when interacting with web pages. The authors found evidence that the nature of Web interaction is changing from static information delivery to more dynamic interactivity. The strong increase in submit events indicates more dynamic web applications, and the increase in new windows shows more parallel paths. The authors found similar F-shaped patterns of link following activity to eye tracking study heatmaps. Most selected links reside in the upper left quadrant of the browser window, and users don’t utilize their entire screens (890 pixels wide on average). The authors conclude that browsing is a rapid interactive activity, with pages viewed for a brief period, and recommend that developers create concise, fast loading web pages. In Proc. WWW 2006, (ACM Press 2006).
