Serving 2012 Olympic Tickets: London2012 15, CoSport 0 – olympic website performance

Summary:

The race is on to get tickets to the 2012 Summer Olympics in London, England. Are the web sites handing the traffic as fast as the athletes they promote?

The race is on to get tickets to the 2012 Summer Olympics in London, England. Millions of people (some 2.3 to 2.7 million signed up to request tickets so far) are clamoring to attend events featuring the likes of Michael Phelps, Ian Thorpe, and Usain Bolt. To distribute the load in the initial ticket request phase, Olympic organizers are using a batch system to accept requests over a six week period. Even with this even-handed approach, the servers were under tremendous load in the early hours of this past Tuesday. We investigate and show how performance could be improved.

London2012.com versus CoSport.com

Tickets for the 2012 London Summer Olympics went on sale Tuesday March 15. In the UK, registered residents can buy tickets from the official London2012.com website, while those in the US, Australia and some other countries use CoSport.com as their official ticket reseller. With millions of fans are looking for tickets are the servers up to the task?

Batch versus Live Ticket Sales

Unlike the future live ticket phases in June and December this initial request phase is a batch, where the millions of people who signed up enter their event choices from March 15 to April 26, 2011. After all the requests are in, tickets will be assigned, with oversubscribed events chosen by random lottery. Ticket requests during this phase receive the same priority, there is no advantage to applying early. Despite this approach, the sites dispensing tickets experienced high loads Tuesday morning. Checking the
official London2012.com site in the morning, it was up and running (see Figure 1):

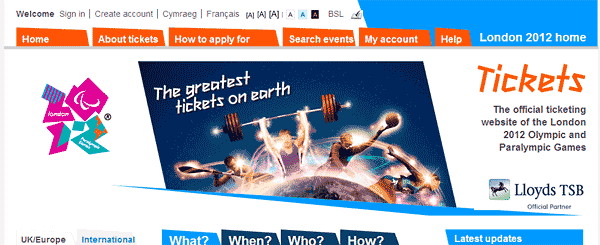

london 2012 olympics tickets site

Figure 1: London2012.com Tickets Site Under Load

CoSport.com Web Site Under Load

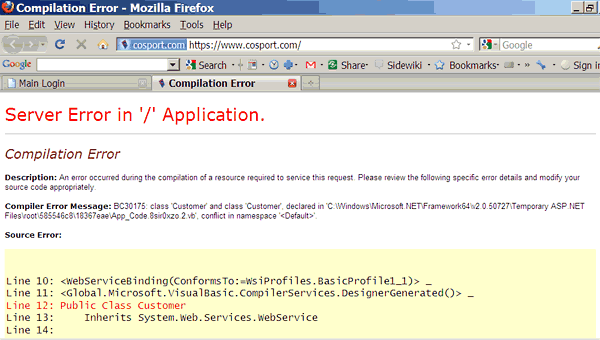

While the authorized US ticket reseller CoSport had some trouble handling the load (see Figure 2):

cosport.com site under load

Figure 2: Cosport.com Under Load

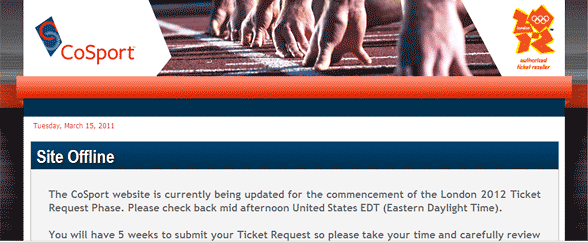

Emails to Cosport were promptly returned, and a notice went up saying “Site Offline” it is being updated, come back mid-afternoon (see Figure 3).

cosport.com site down

Figure 3: Cosport.com Site Announcement

True to their word as of 4pm EST the site was up and able to take ticket requests (see Figure 4).

cosport.com home page

Figure 4: CoSport.com Home Page

Brief Performance Analysis of London2012.com and CoSport.com

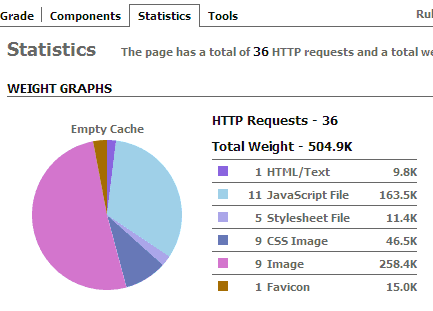

Let’s take a brief look at the two home pages using the YSlow and Page Speed tools. YSlow finds both home pages get a grade of C. The CoSport home page is 504.9K in total size, and uses 36 HTTP requests (see Figure 5).

cosport.com home page yslow analysis

Figure 5: CoSport.com YSlow Results

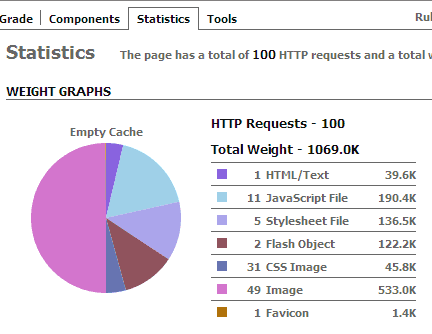

The official London2012.com site also scores a C in YSlow, with 1069K total page size, requiring 100 requests (see Figure 6).

london2012.com home page yslow analysis

Figure 6: London2012.com YSlow Results

Page Speed Analysis of London2012.com and CoSport.com

A Page Speed analysis of the two home pages tells a similar story. The CoSport.com home page scores an 80 out of 100 possible points (see Figure 7).

corpost.com home page page speed analysis

Figure 7: London2012.com Page Speed Results

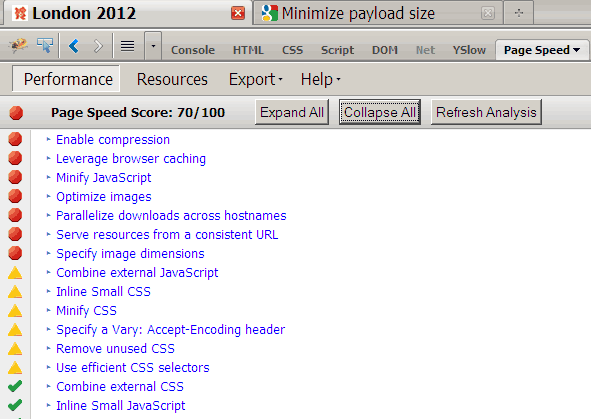

While the London2012.com home page scores a 70 out of 100 with Page Speed (see Figure 8).

london2012.com home page page speed analysis

Figure 8: London2012.com Page Speed Results

Waterfall Analysis of CoSport.com and London2012.com

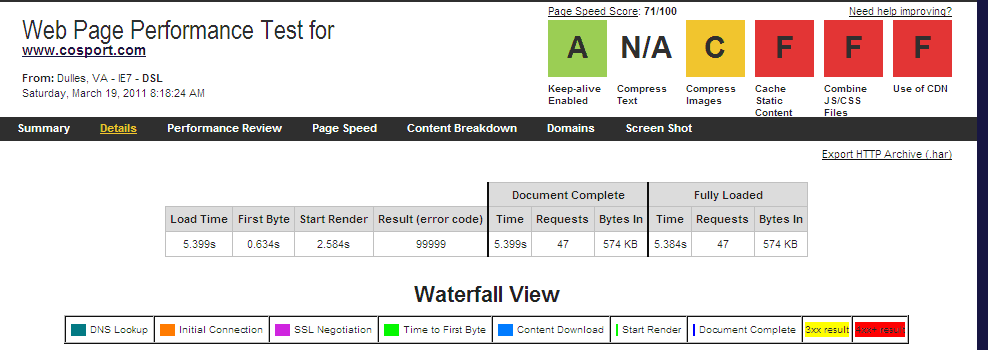

Looking at waterfall graphs can help isolate problem areas in web page performance. Using webpagetest.org, we find the following results for both sites. First the overall results for CoSport.com (see Figure 9).

cosport.com home page page web page test results

Figure 9: CoSport.com Web Page Test Results

CoSport.com loads in 5.4 seconds, and starts to render content in 2.58 seconds.

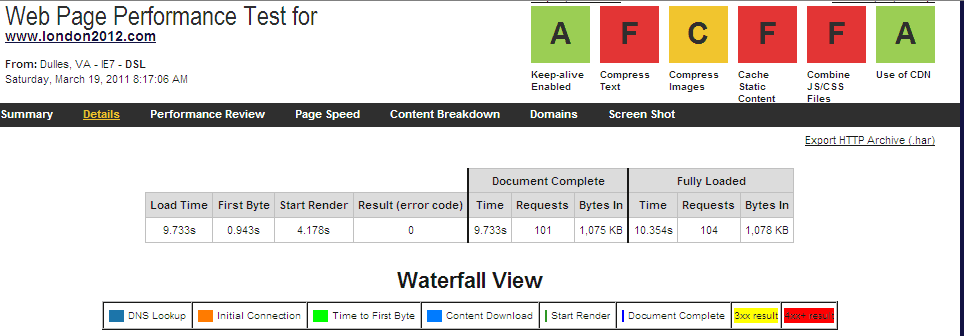

The London2012.com site loads in 9.7 seconds, and starts to render content in 4.2 seconds (see Figure 10).

london2012.com home page page web page test results

Figure 10: London2012.com Web Page Test Results

Waterfall Graphs

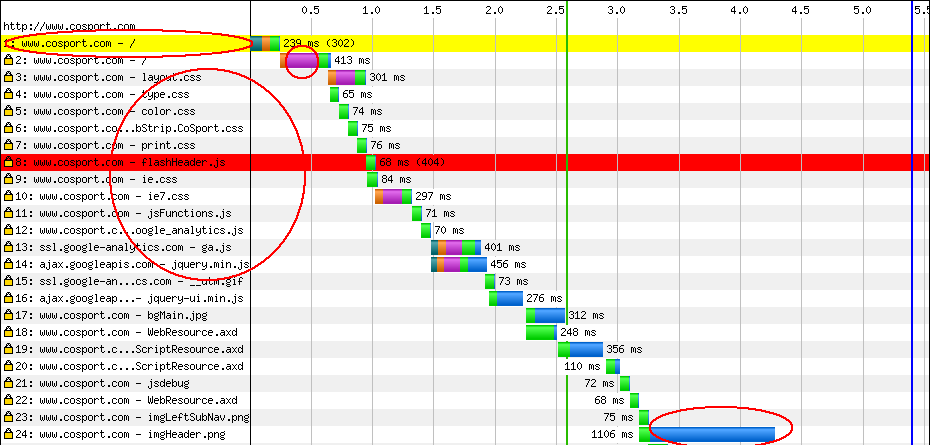

The waterfall graph for the two sites shows how each web page component loads, and breaks down the different load time components (DNS lookup, time to first byte, content download, etc.). Figure 11 shows the CoSport.com waterfall graph.

cosport.com home page waterfall graph

Figure 11: CoSport.com Waterfall Graph

Note the highlighted areas. CoSport.com redirects to a secure page on the home page, with associated SSL delays. Multiple CSS and JavaScript files delay the time to first byte.

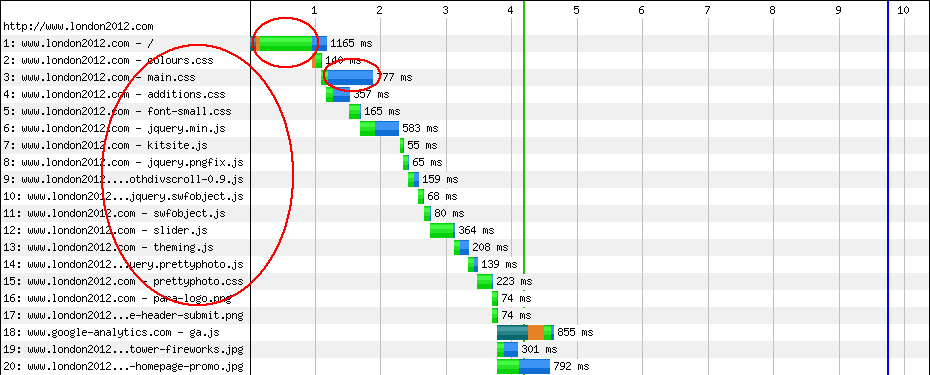

The waterfall graph for the London2012.com is shown in Figure 12. The London2012 site shows about a 0.8 second time to first byte for the home page, and multiple CSS and JavaScript files which delay the time that useful content displays.

london2012.com home page waterfall graph

Figure 12: London2012.com Waterfall Graph

Front-End versus Back-End Performance

The CoSport.com home page is less than half the size of the London2012.com home page (504.9K versus 1069K), and uses nearly 1/3 of the requests (38 versus 100). The front-end engineers at CoSport have done a good job of making their site smaller and more streamlined than the official London2012 site. So even though the CoSport home page is half the size with nearly 1/3 the requests, the London2012 site stayed up and available during the crush of visitors Tuesday morning. This shows that the backend capacity is higher on the London2012.com site. According to Steve Souders, 80% of performance problems are on the front-end (Higher Performance Web Sites, O’Reilly), but under high load the main difference here is the back-end performance and request capacity of the servers.

Suggested Performance Recommendations

Based on the findings above, we’d recommend that CoSport.com beef up their back-end infrastructure and CDN to better handle more simultaneous requests and higher peak bandwidth. They could combine CSS files and JavaScript files to minimize HTTP requests, and avoid a redirect to an SSL page on their home page to avoid SSL overhead. During peak access times, they could replace key pages with minimalist pages by substituting CSS text or sprites for graphic text (see the highlighted country button examples above in Figure 4), to minimize the number of requests served. The London2012.com team could improve performance by adding GZIP compression, improving caching, minifying and combining JavaScript and CSS, and optimizing and combining images.
